Aluminum Y-Shaped External Corner Trim

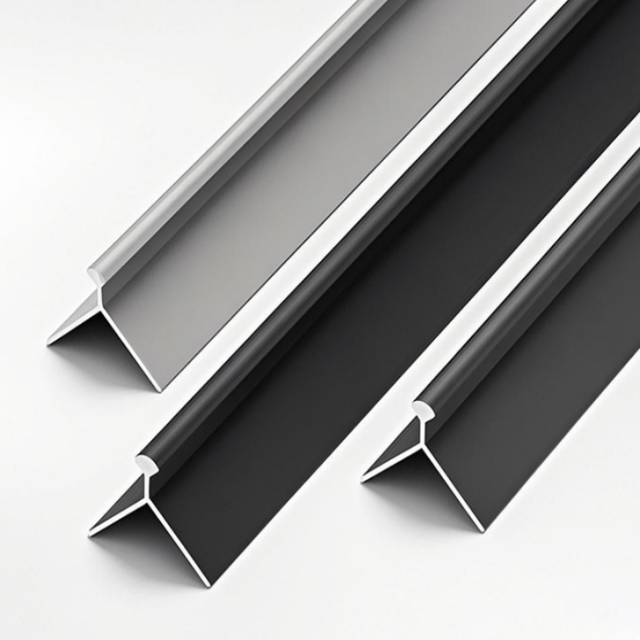

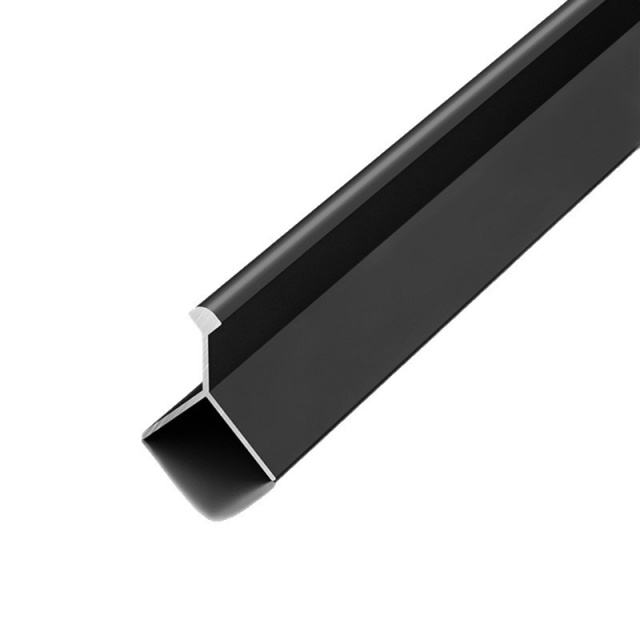

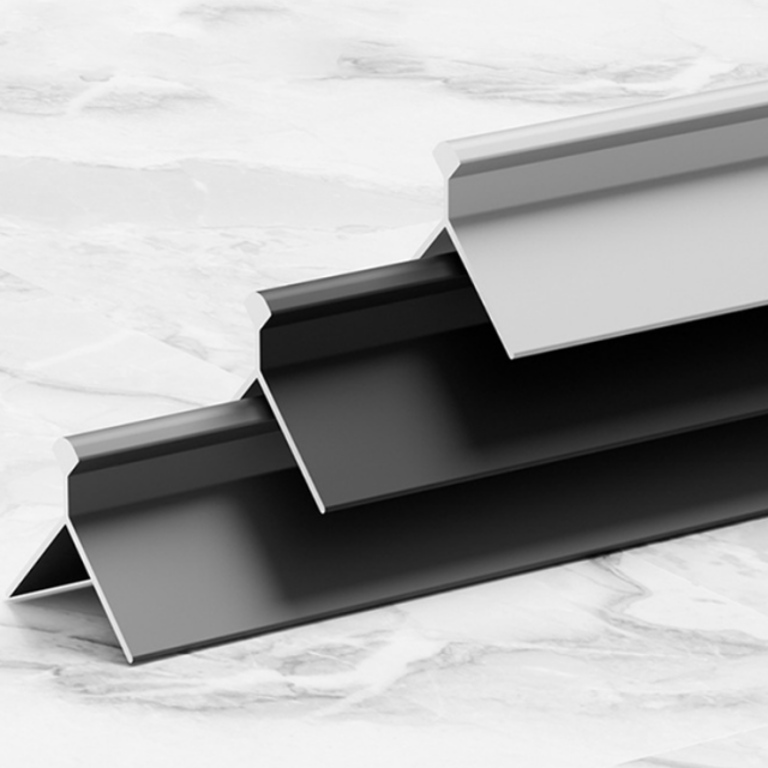

Aluminum Y-Shaped External Corner Trim: Seamless 90° Angle Finishing for Tiles & Wall Panels

Why Our Y-Shaped External Corner Trim Stands Out

Tired of rough, chipped external corners or trim that warps in damp spaces? Our

aluminum Y-shaped external corner trim

is engineered to transform messy tile/panel installations into crisp, polished 90° angles. Built for bathrooms, kitchens, living rooms, and commercial spaces, it solves 3 critical pain points: concealing uneven edges, shielding vulnerable corners from damage, and elevating your space with a cohesive, high-end finish.

Premium 6063-T5 Aluminum Construction: Built to Last

Crafted from the gold standard of building hardware alloy:

Waterproof & Corrosion-Proof

: Anodized surface treatment creates a moisture-tight barrier – ideal for bathrooms (where plastic trims degrade) and kitchens (where splashes and humidity are constant).

Impact & Scratch-Resistant

: 1.2mm-thick aluminum (thicker than generic 0.8mm trims) withstands bumps, cleaning tools, and daily wear without dents, scuffs, or bending.

: The anodized coating ensures finishes (matte black, brushed silver) resist fading, chipping, or peeling – even after 5+ years of heavy use.

: Rounded top edges eliminate sharp, hazardous corners (perfect for homes with kids or high-traffic areas).

3-Step Installation (No Special Skills Required)

Install in 10 minutes or less – perfect for DIYers and contractors alike:

- Use a tape measure to mark the trim length (match the height of your tiles/panels).

- Cut with a hacksaw (for straight cuts) or miter saw (for 45° joins at ceiling/floor intersections).

- Sand the cut edge lightly to remove burrs for a smooth finish.

- Wipe the external corner (tiles/panels) clean with a dry cloth to remove dust, oil, or debris (ensures strong adhesive bond).

- Spread a thin, even layer of tile adhesive (or construction glue) onto the back of the Y-trim.

- Press the trim firmly onto the corner, aligning it with both adjacent surfaces.

- Hold for 30 seconds, then secure with masking tape until the adhesive dries (24 hours for full bond strength).

Top Use Cases (Where Y-Trim Excels)

This trim adds value to any external corner:

: Finish tile/panel corners around showers, tubs, or vanities – the waterproof coating prevents mold growth in gaps between surfaces.

: Protect backsplash tile corners from grease splatters and cleaning scratches (easy to wipe clean with a damp cloth).

: Create sharp, modern angles for accent wall panels (matte black or brushed silver trim enhances visual depth).

: Polish restaurant kitchen corners or retail display walls – durable enough to withstand high foot traffic and frequent cleaning.

: Use on exterior tile/panel corners (weather-resistant aluminum resists rain, sun, and temperature fluctuations).

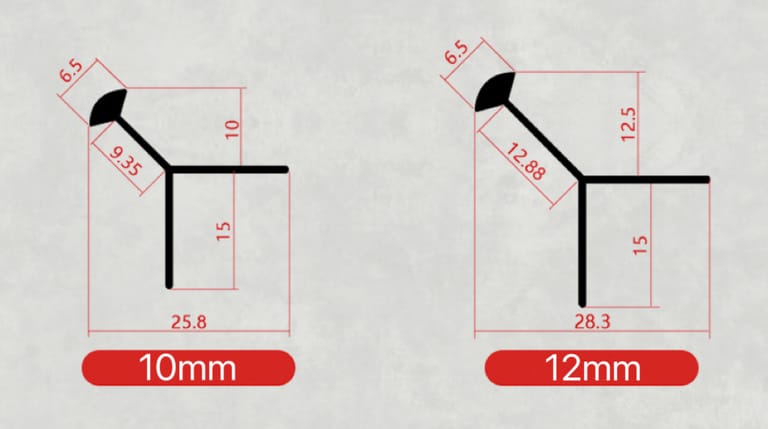

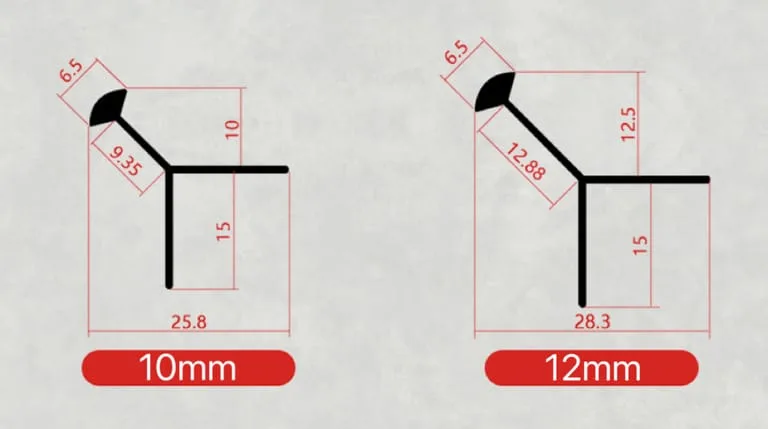

Our Y-shaped trim is tailored to 2 common material thicknesses (tiles, PVC panels, SPC panels, or stone):

- Depth (from corner to trim edge): 15mm

- Angled section length: 9.35mm

- Ideal for 10mm-thick tiles/panels (creates a tight, gap-free wrap around corners).

- Angled section length: 12.88mm

- Designed for 12mm-thick tiles/panels (maintains a seamless transition between two surfaces).
